In-class Exercise 6

Visualising and Analysing Time-oriented Data

This exercise is about working with temporal data.

Loading packages

pacman::p_load(scales, viridis, lubridate, ggthemes, gridExtra, tidyverse, readxl, knitr, data.table)

Calendar Heatmaps

We will use a data file comprising199,999 rows of time-series cyber attack records, by country.

Importing the dataset:

attacks <- read_csv("data/eventlog.csv")

Examining the data structure using kable().

kable(head(attacks))

timestamp	source_country	tz
2015-03-12 15:59:16	CN	Asia/Shanghai
2015-03-12 16:00:48	FR	Europe/Paris
2015-03-12 16:02:26	CN	Asia/Shanghai
2015-03-12 16:02:38	US	America/Chicago
2015-03-12 16:03:22	CN	Asia/Shanghai
2015-03-12 16:03:45	CN	Asia/Shanghai

We note that:

• timestamp field stores date-time values in POSIXct format (Note: POSIXct stores date and time in seconds with the number of seconds beginning at 1 January 1970. Each date and time is thus a single value in units of seconds. This speeds up computation, processing and conversion to other formats.)

• source_country field stores the source of the attack. It is in ISO 3166-1 alpha-2 country code

• tz field stores time zone of the source IP address

Data Preparation

Step 1: Deriving wkday and hour fields to enable plotting of the calendar heatmap.

make_hr_wkday <- function(ts, sc, tz) {
  real_times <- ymd_hms(ts,
                        tz = tz[1],
                        quiet = TRUE)
  dt <- data.table(source_country = sc,
                   wkday = weekdays(real_times),
                   hour = hour(real_times))
  return(dt)
  }

Step 2: Deriving the attacks tibble data frame.

wkday_levels <- c('Saturday', 'Friday',
                  'Thursday', 'Wednesday',
                  'Tuesday', 'Monday',
                  'Sunday')

attacks <- attacks %>%
  group_by(tz) %>%
  do(make_hr_wkday(.$timestamp,
                   .$source_country,
                   .$tz)) %>%
  ungroup() %>%
  mutate(wkday = factor(
    wkday, levels = wkday_levels),
    hour  = factor(
      hour, levels = 0:23))

Note: The use of factor() ensures that those variables are ordered during plotting.

Checking the structure of attacks.

kable(head(attacks))

tz	source_country	wkday	hour
Africa/Cairo	BG	Saturday	20
Africa/Cairo	TW	Sunday	6
Africa/Cairo	TW	Sunday	8
Africa/Cairo	CN	Sunday	11
Africa/Cairo	US	Sunday	15
Africa/Cairo	CA	Monday	11

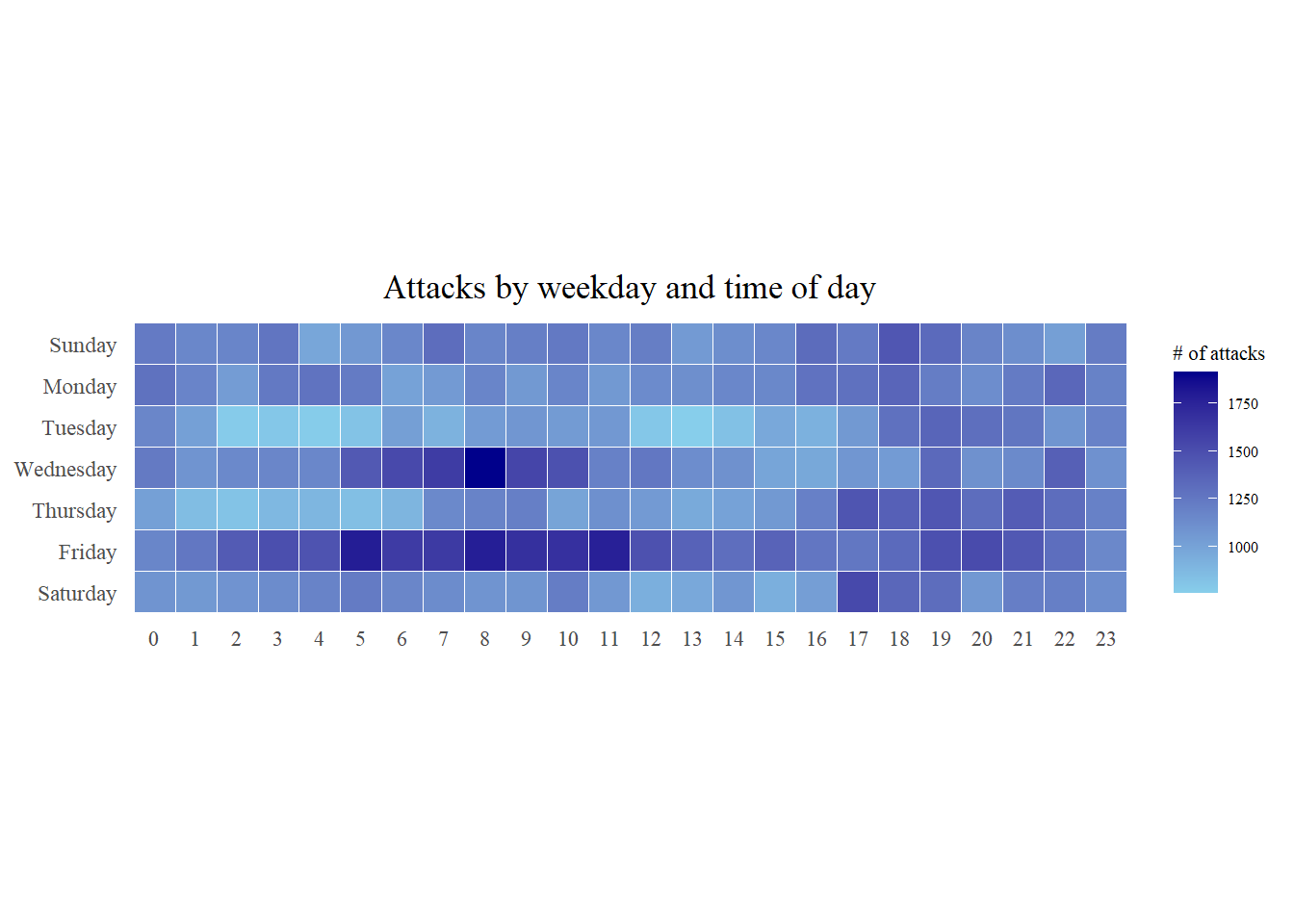

Building the calendar heatmaps

…

grouped <- attacks %>%
  count(wkday, hour) %>%
  ungroup() %>%
  na.omit()

ggplot(grouped,
       aes(hour,
           wkday,
           fill = n)) +
geom_tile(color = "white",
          linewidth = 0.1) +
theme_tufte(base_family = "serif") +
coord_equal() +
scale_fill_gradient(name = "# of attacks",
                    low = "sky blue",
                    high = "dark blue") +
labs(x = NULL,
     y = NULL,
     title = "Attacks by weekday and time of day") +
theme(axis.ticks = element_blank(),
      plot.title = element_text(hjust = 0.5),
      legend.title = element_text(size = 8),
      legend.text = element_text(size = 6) )

[NOTES]

Building multiple calendar heatmaps

Steps 1 and 2 will identify and extract data on the top 4 countries in terms of number of attacks.

Step 1: Deriving attack by country object

attacks_by_country <- count(
  attacks, source_country) %>%
  mutate(percent = percent(n/sum(n))) %>%
  arrange(desc(n))

Step 2: Preparing the tidy data frame

top4 <- attacks_by_country$source_country[1:4]
top4_attacks <- attacks %>%
  filter(source_country %in% top4) %>%
  count(source_country, wkday, hour) %>%
  ungroup() %>%
  mutate(source_country = factor(
    source_country, levels = top4)) %>%
  na.omit()

Now we plot the multiple heat map using ggplot2.

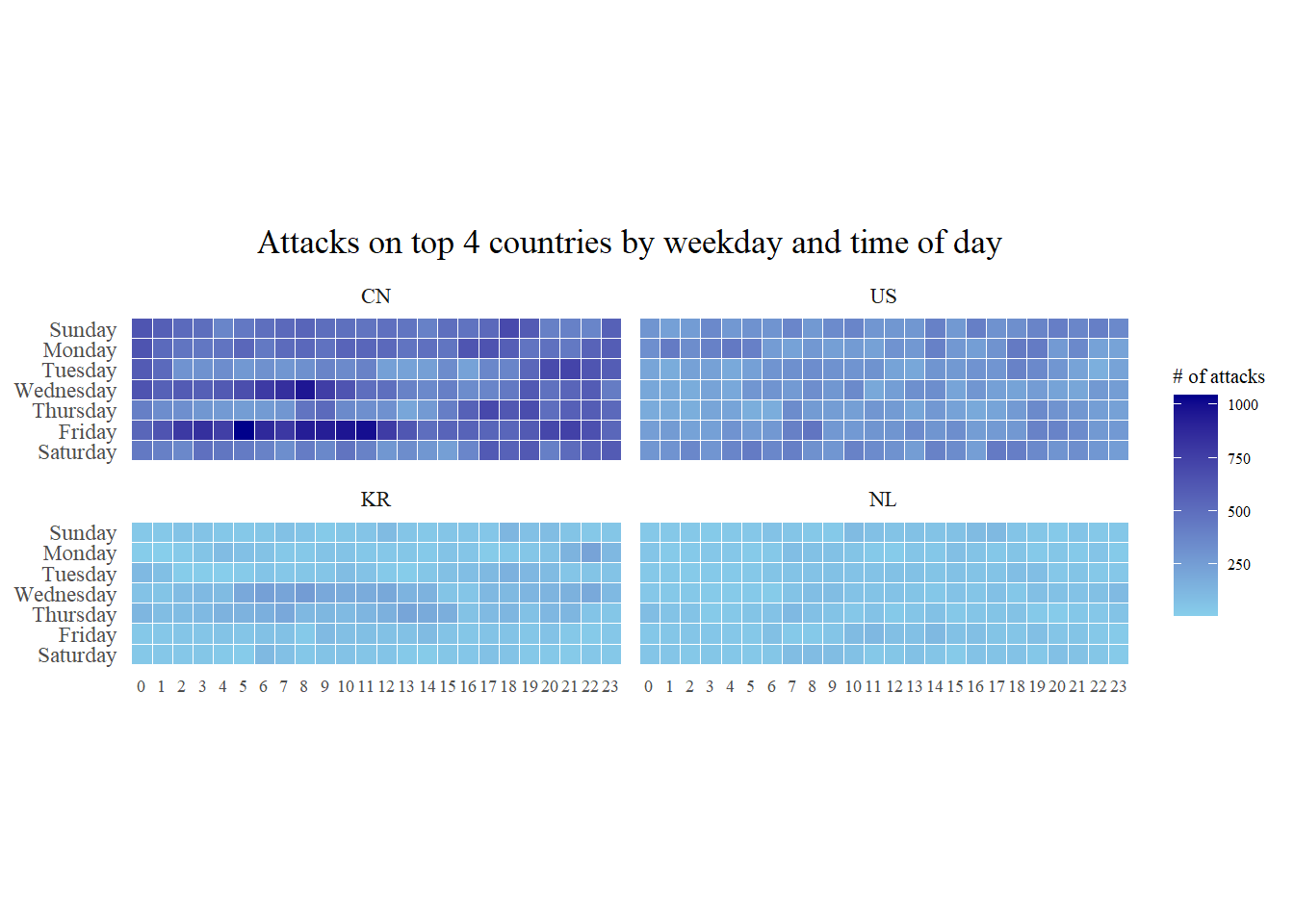

Step 3: Plotting the Multiple Calender Heatmaps

ggplot(top4_attacks,
       aes(hour,
           wkday,
           fill = n)) +
  geom_tile(color = "white",
          size = 0.1) +
  theme_tufte(base_family = "serif") +
  coord_equal() +
  scale_fill_gradient(name = "# of attacks",
                    low = "sky blue",
                    high = "dark blue") +
  facet_wrap(~source_country, ncol = 2) +
  labs(x = NULL, y = NULL,
     title = "Attacks on top 4 countries by weekday and time of day") +
  theme(axis.ticks = element_blank(),
        axis.text.x = element_text(size = 7),
        plot.title = element_text(hjust = 0.5),
        legend.title = element_text(size = 8),
        legend.text = element_text(size = 6) )

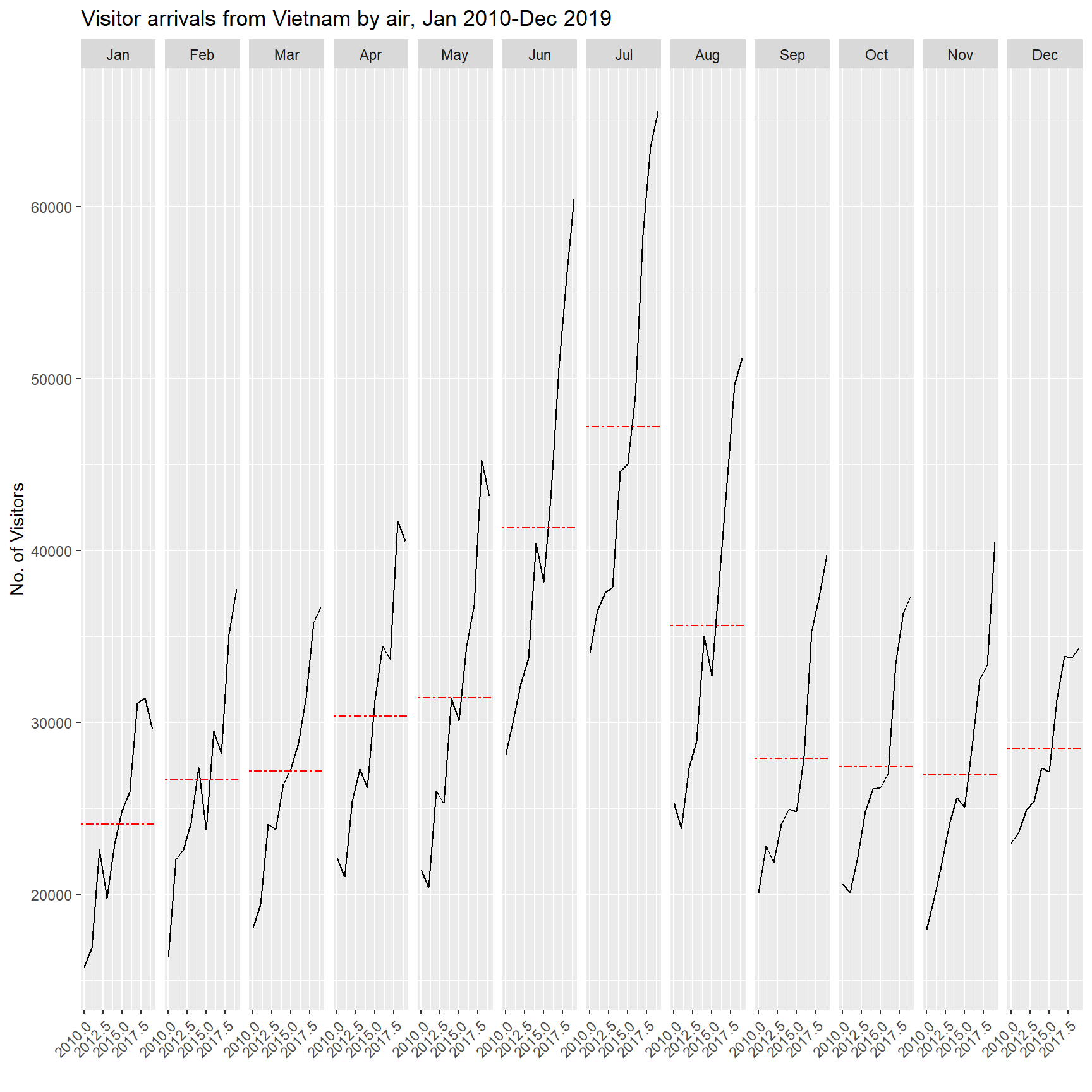

Cycle Plots

We will plot a cycle plot showing the time-series patterns and trend of visitor arrivals from Vietnam, using ggplot2.

Importing the dataset:

air <- read_excel("data/arrivals_by_air.xlsx")

…

air$month <- factor(month(air$`Month-Year`),
                    levels=1:12,
                    labels=month.abb,
                    ordered=TRUE)
air$year <- year(ymd(air$`Month-Year`))

…

Vietnam <- air %>%
  select(`Vietnam`,
         month,
         year) %>%
  filter(year >= 2010)

…

hline.data <- Vietnam %>%
  group_by(month) %>%
  summarise(avgvalue = mean(`Vietnam`))

…

ggplot() +
  geom_line(data=Vietnam,
            aes(x=year,
                y=`Vietnam`,
                group=month),
            colour="black") +
  geom_hline(aes(yintercept=avgvalue),
             data=hline.data,
             linetype=6,
             colour="red",
             size=0.5) +
  facet_grid(~month) +
  labs(axis.text.x = element_blank(),
       title = "Visitor arrivals from Vietnam by air, Jan 2010-Dec 2019") +
  xlab("") +
  ylab("No. of Visitors") +
  theme(axis.text.x = element_text(angle = 45, vjust = 1, hjust=1))
